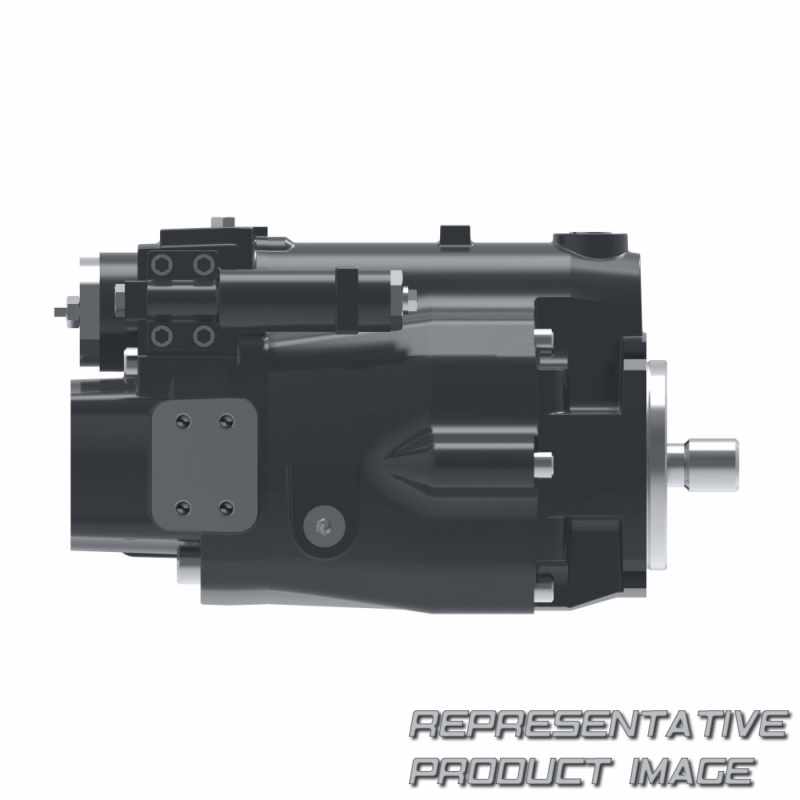

| pumps | pvm; 74cc; ; cw (rh); 1800 rpm; mtg flng sae j744-127-4 (c; 4-bolt); shaft sae c-c; str keyed ; ports sae j518 flng; sae aux; port loc side; cntrl industrial (pc ls); aux mtg sae a; 2-bolt; 9t spline ; | ||
| displacement | 074 : 73,7 cm3/r [4.50 in3/r] (315 bar max) | ||
| input rotation | r : clockwise (right hand) | ||
| Mounting flange | g : sae j744-127-4 (c, 4-bolt) (models 057, 074, 098 and 131) | ||
| port options | 02 : sae j518 flange ports, sae auxiliary ports | ||
| control | e : industrial control (pressure and flow compensated) model 057 thru 141 | ||
| flow comp setting / unload vlv standby | 20 : 19-21 bar [275.5-304.5 lbf/in2] | ||
| compensator special feature | 0 : none | ||
| paint | a : blue | ||
| design code | a : a |
| code title | pvm : vickers variable displacement open circuit piston pumps | ||
| valve plate | e : industrial (1800 r/min max) | ||
| input shaft | 10 : sae j744-38-1, sae c-c, straight keyed (model 074, 098 and 131) | ||
| main port location | s : side | ||
| pump special features | aa : adjustable max displacement stop (contains single shaft seal) | ||
| pressure comp setting | 00 : none | ||
| other compensation / unload vlv reset | 00 : none | ||
| auxiliary mounting | a : sae a, 2-bolt, 9t spline (all models) | ||
| customer identification | 0 : none |
