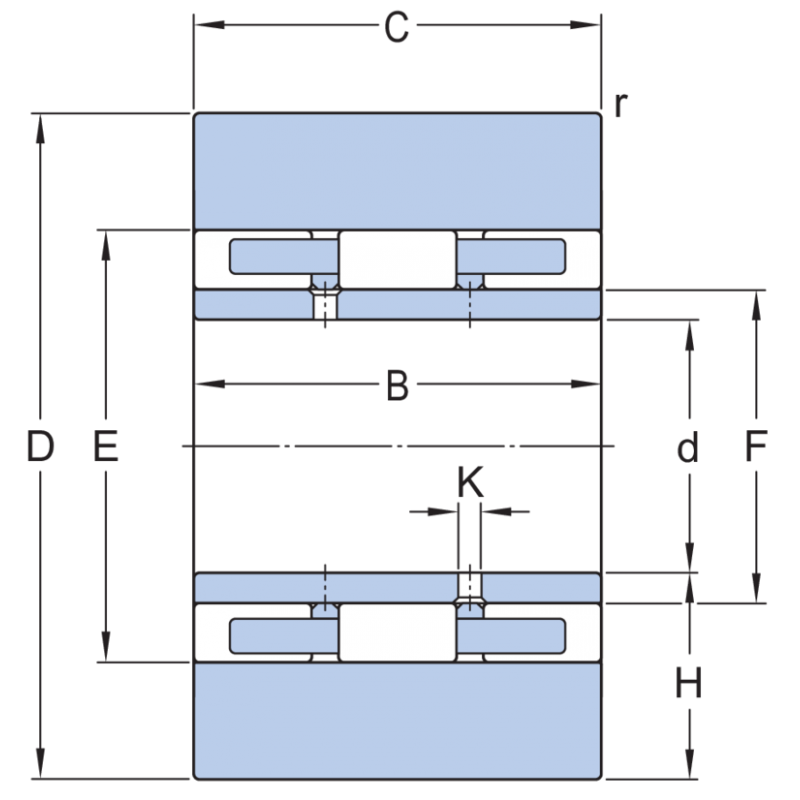

| Outside diameter | d2 | 300 | mm |
| Section height | H | max.84.965 | |
| Total bearing width over outer ring(s) | C | 172,64 | mm |
| Raceway diameter outer ring | E | 218,46 | mm |
| Bore diameter | d | 130 | mm |
| Total bearing width over inner ring(s) | B | 172,64 | mm |
| Raceway diameter inner ring | F | 159,38 | mm |
| Chamfer dimension outer ring | r1,2 | min.2.7 |
