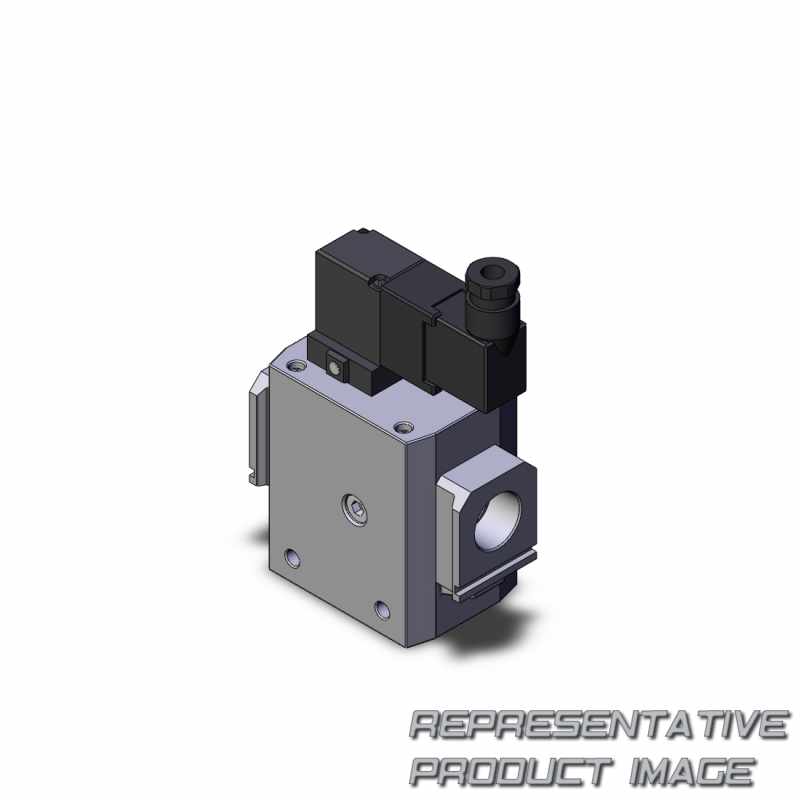

| model | av4000 | ||
| proof pressure | 1.5 mpa | ||
| pressure gauge port size | 1/8 | ||
| effective area (mm2) - 1(p) 2(a) | 61 | ||
| mass (kg) | 0,74 | ||
| electrical specifications - allowable voltage fluctuation | ?15 to +10% of rated voltage | ||
| electrical specifications - apparent power ac(current consumption) | 3.4 va (2.1 w)/50 hz, 2.3 va (1.5 w)/60 hz | ||
| electrical specifications - electrical entry | grommet, type d din terminal, type y din terminal | ||
| pilot valve manual override | non-locking push type (flush),locking type (tool required), locking type (lever) |
| Port size | 1/2 | ||
| operating pressure range | 0.2 to 1 mpa | ||
| ambient and fluid temperature | 0 to 60c (1) | ||
| effective area (mm2) - 2(a) 3(r) | 76 | ||
| electrical specifications - rated coil voltage | 100, 200, 110 to 120, 220 vac (50/60 hz), 240 vac (50/60 hz) 12, 24 vdc | ||
| electrical specifications - coil insulation type | equivalent to b type (130c) | ||
| electrical specifications - current consumption dc | 1.8 w | ||
| electrical specifications - option specifications | indicator light/surge voltage suppressor (2) | ||
| Weight | 1.83717 lb |
