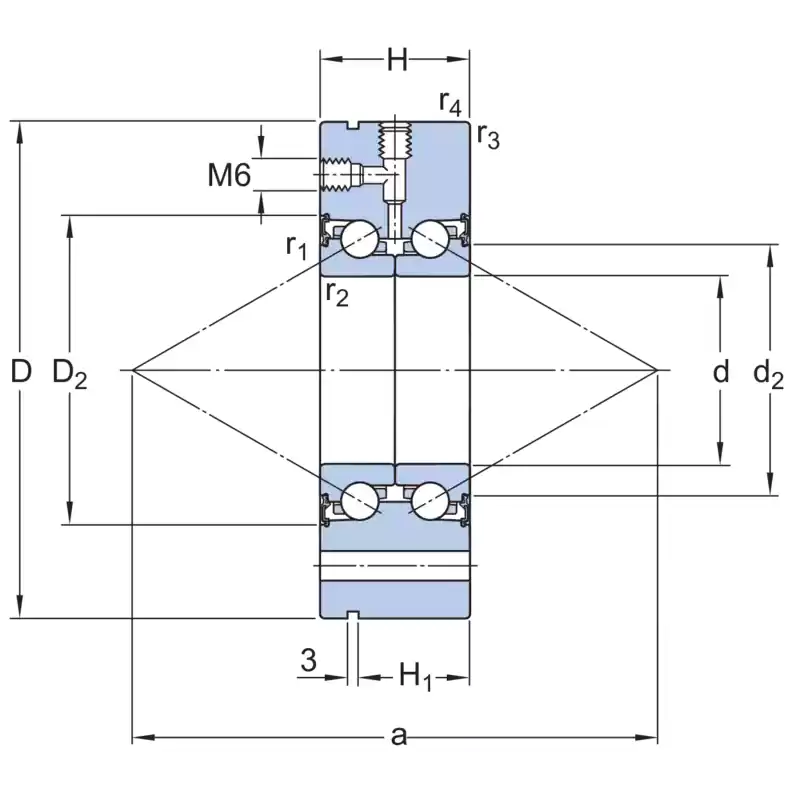

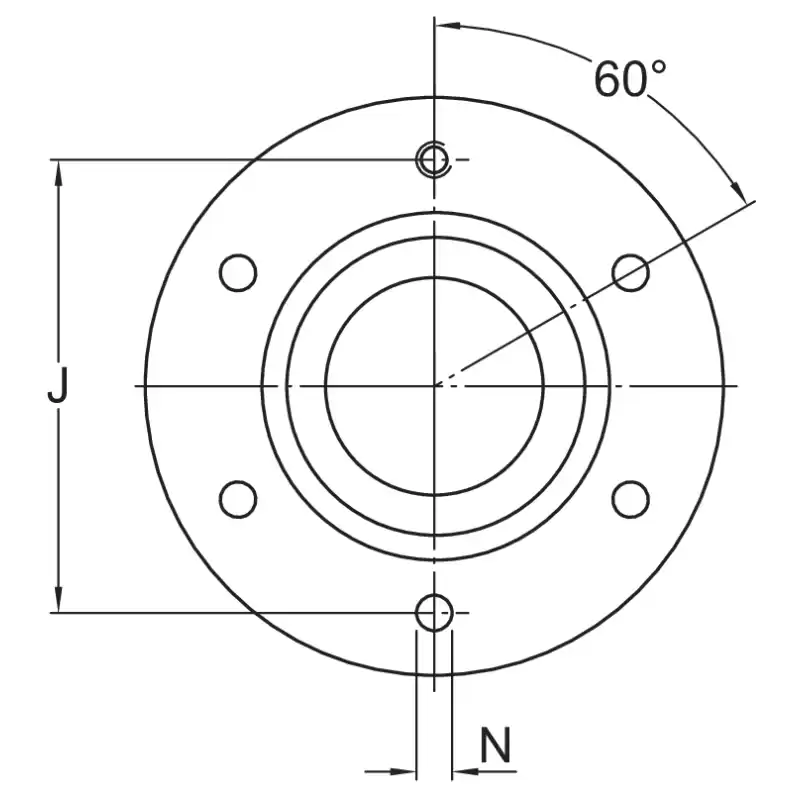

| Through hole for attachment bolts | N | 6,80 | mm |
| Distance pressure points | a | 62 | mm |
| Extraction groove position | H1 | 17 | mm |
| Inner ring recess diameter | d2 | 26,70 | mm |
| Outside diameter | d2 | 60 | mm |
| Pitch diameter of holes for bolts | J | 46 | mm |
| Chamfer radius | r1,2 | min.0.6 | |
| Outer ring recess diameter | D2 | 36,10 | mm |
| Height | H | 25 | mm |
| Bore diameter | d | 15 | mm |
