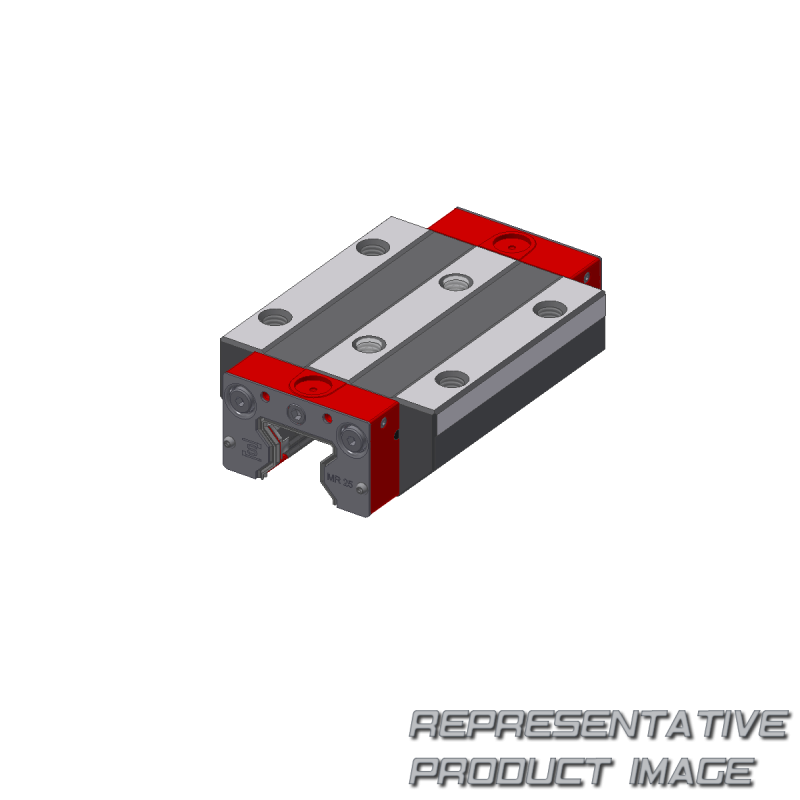

| type (monorail carriage) | bm | ||
| buildsize | 45 | ||
| Preload class | v3 | ||
| a - system height in mm | 60 | ||
| b2 - distance between locating faces | 37,50 | ||
| c3 - position of lateral lube hole | 8 | ||
| c7 - position of lateral lube hole | 17,10 | ||
| l - carriage length | 137,40 | ||
| l2 - interior fixing hole spacing | 60 | ||
| n - lateral fixing hole spacing | 100 | ||
| c0 - static load capacitiy (n) | 134,800 | ||
| m0q - static cross moment capacity (nm) | 3,193 | ||
| mq - dyn. cross moment capacity (nm) | 1,466 | ||
| weight rail (kg) | 3,30 |
| carriage build form | a | ||
| Accuracy class | g1 | ||
| coating | cn | ||
| b - carriage width in mm | 120 | ||
| c1 - position of center front lube hole | 8 | ||
| c4 - position of lateral lube hole | 21,10 | ||
| j - carriage height | 50,80 | ||
| l1 - exterior fixing hole spacing | 80 | ||
| l6 - steel body length | 99,10 | ||
| o - reference face height | 10 | ||
| c100 - dynamic load capacity (n) | 61,900 | ||
| m0l - static longitud. moment capacity (nm | 2,498 | ||
| ml - dyn. longitud. moment capacity (nm) | 1,147 |
