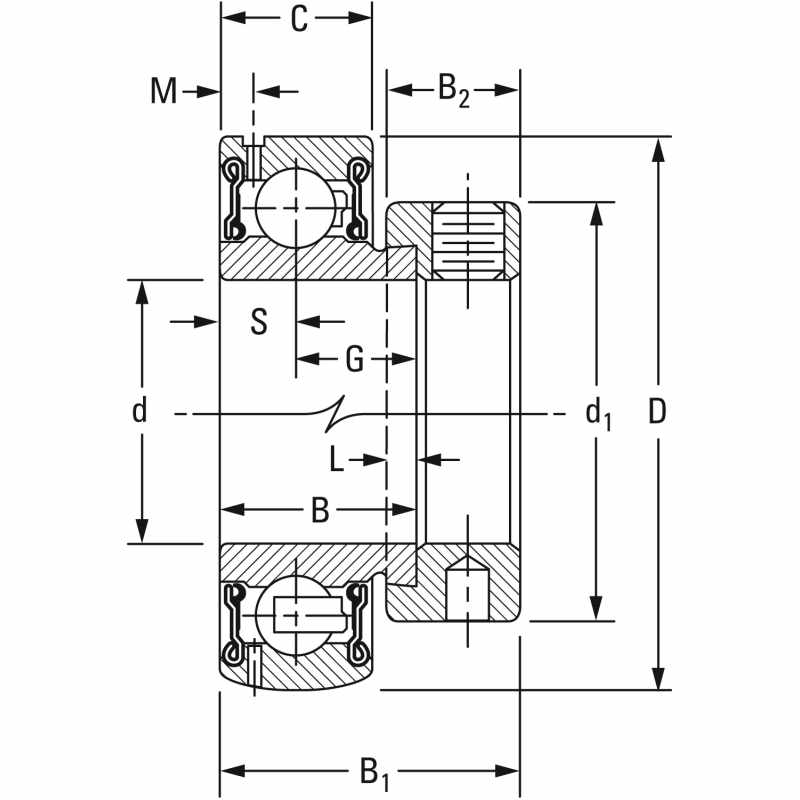

| Dimension B2 | 13,50 | mm | |
| Dimension M | 3,61 | mm | |
| Angle between Set Screws | 90 º | ||
| Set Screw Size | 1/4-20 | ||
| Radius r | 0,60 | mm | |
| Inner Ring Width B | 21,44 | mm |
| Dimension B1 | 31 | mm | |
| Dimension d1 | 38,10 | mm | |
| Number of Set Screws | 2 | ||
| Center of Bearing from End S | 7,49 | mm | |
| Outside Ring Width C | 15 | mm | |
| Outside Diameter D | 52 | mm |
| Weight | 0,20 | Kg | |
| Sub Series | GRA..RRB | ||
| O.D. Type | Spherical OD | ||
| Material | Bearing Steel | ||
| Bore Type | Cylindrical bore | ||
| Manufacturing Part Number | GRA014RRB + COL |
| Seal Type | Molded Shroud | ||
| Series | Standard | ||
| Lubrication Type | Relubricatable | ||
| Bearing Type | Ball Bearing | ||
| Shaft Size d | 7/8 in |
