| Weight | 627.63561 lb | ||
| mass note 10) | 170 | ||
| electrical system - alarm | refer to page 94. | ||
| electrical system - breaker capacity | 30 | ||
| cooling water system - required flow note 9) (50/60 hz) (l/min) | stainless steel, epdm, copper brazing (heat exchanger), silicone, brass | ||
| cooling water system - temperature range | 18/23 | ||
| circulating fluid system - port size | stainless steel, epdm, copper brazing (heat exchanger), pps, silicone, fluororesin | ||
| circulating fluid system - main tank capacity note 7) ( l) | approx. 15 | ||
| circulating fluid system - pump capacity note 5) (50/60 hz) (mpa) | 0.25/0.38 (at 20 l/min) | ||
| circulating fluid system - heating capacity note 3) (kw) | 1.25 (at 20c) | ||
| circulating fluid system - temperature range setting note 1) (c) | 10 to 40 | ||
| ambient temperature/humidity note 1) | temperature: 10 to 35c, humidity: 30 to 70%rh | ||
| refrigerant | r134a (hfc) | ||

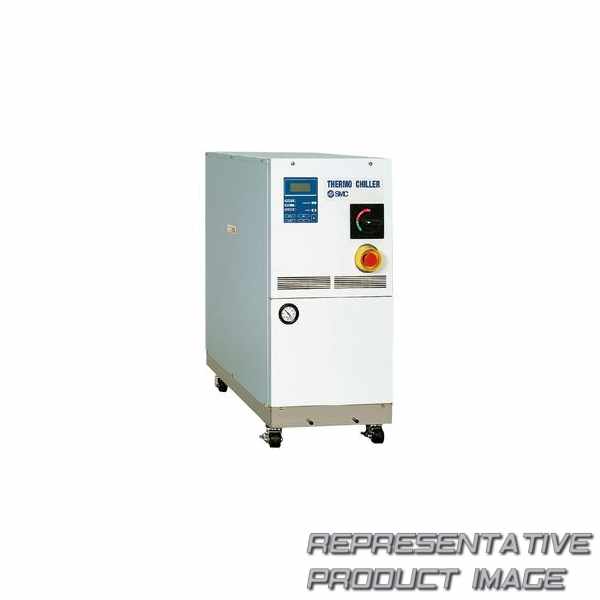

| model | hrz008-l2 |
| safety standards | ul, ce marking, semi (s2-0703, s8-0701, f47-0200), sematech (s2-93, s8-95) | ||
| electrical system - communications | contact input/output (d-sub 25 pin) and serial rs-485 (d-sub 9 pin) (refer to pages 92 and 93.) | ||
| electrical system - rated current | 19 | ||
| electrical system - power supply | 3-phase 200 vac 50 hz, 3-phase 200 to 208 vac 60 hz allowable voltage fluctuation ?10% | ||
| cooling water system - pressure range | rc 1/2 | ||
| cooling water system - wetted parts material | 0.3 to 0.7 | ||
| circulating fluid system - sub-tank capacity note 8) ( l ) | approx. 16 | ||
| circulating fluid system - rated flow note 6) (l/min) | 20 | ||
| circulating fluid system - temperature stability note 4) (c) | ?0.1 | ||
| circulating fluid system - cooling capacity note 3) (kw) | 8.0 (at 20c) | ||
| circulating fluid system - circulating fluid note 2) | clear water, deionized water | ||
| control system | pid control | ||
| cooling method | water-cooled refrigeration |
