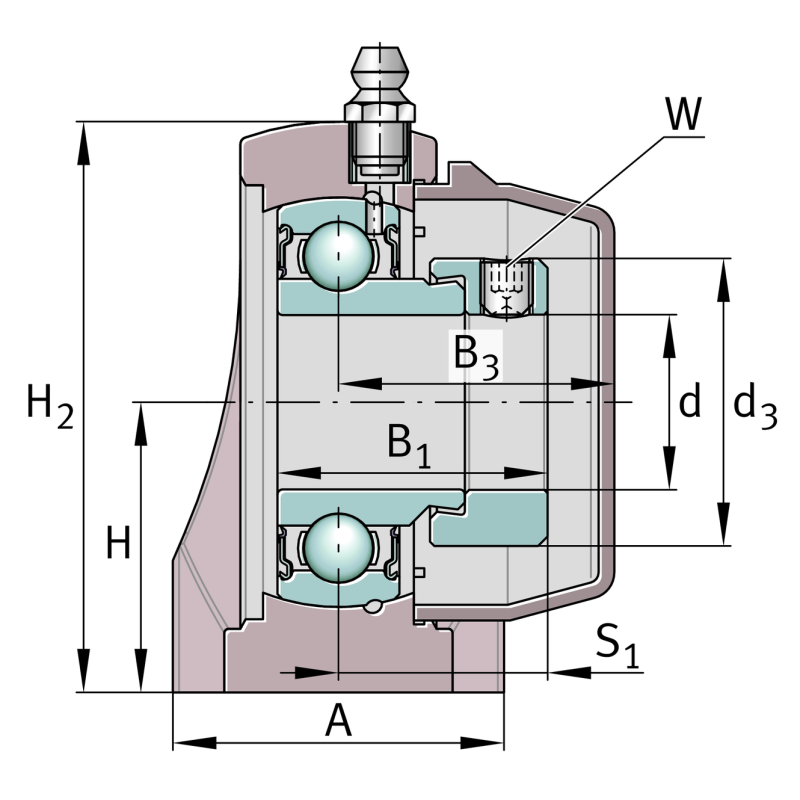

| Outside diameter eccentric locking collar | d3 | 44,50 | mm |
| Distance raceway to locking collar | S1 | 27,70 | mm |
| Height (base) | H1 | 17,80 | mm |
| Distance shaft axis | h | 42,90 | mm |
| connection thread lubrication | 1/4"-28 UNF | ||
| Locking collar total width | B1 | 35,70 | mm |
| Width (base) | A | 46 | mm |
| Width of flats | W | 3 | mm |
| Width (slot) | N | 14 | mm |
| Length (slot) | N1 | 18 | mm |
| Distance fixing bore | J | 119 | mm |
| Height | T | 83 | mm |
| Bore diameter | d | 30 | mm |
| length | L | 162 | mm |
