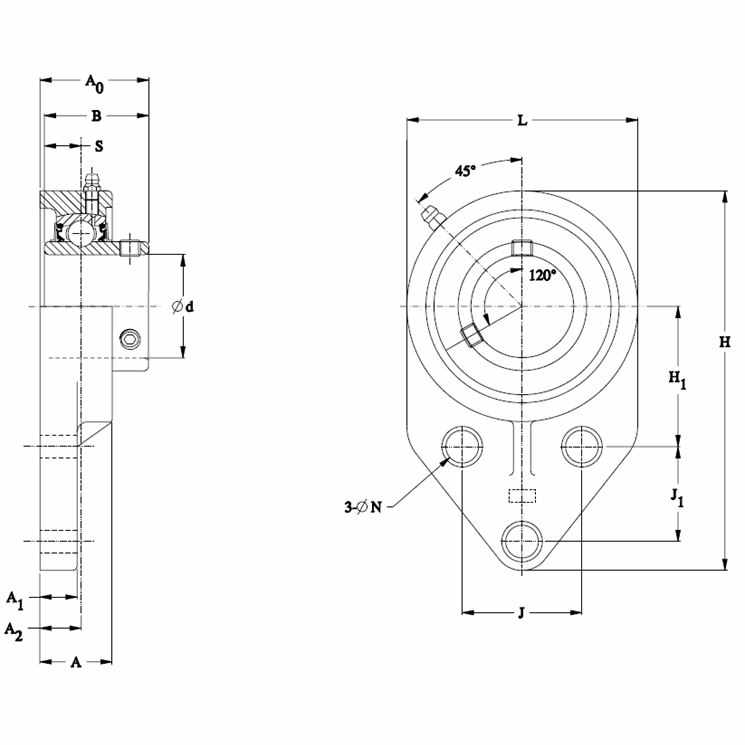

| Total Length L | 95 | mm | |
| Total Width A0 | 47,10 | mm | |
| Bolt Hole Size N | 13 | mm | |
| Housing Width A | 36,50 | mm | |
| Dimension H1 | 60,30 | ||
| Center of Bearing from Bearing End S | 17,50 | mm |
| Total Height H | 157 | mm | |
| Bolt Hole Spacing J | 50,80 | mm | |
| Flange Thickness A1 | 16 | mm | |
| Dimension A2 | 21,70 | ||
| Dimension J1 | 31,80 | mm | |
| Inner Ring Width B | 42,90 | mm |
| Housing Construction | Three-Bolt Flange | ||
| Bearing Number | SUC207/F | ||
| Lubrication Type | Standard Food Safe Grease | ||
| Locking Style | Set Screw Locking |
| Housing Material | White Thermoplastic (Polymer) | ||
| Bore Size | 35 | mm | |
| Weight | 1,50 | Kg | |
| Bearing Style | Ball Bearing |
