549045 Festo

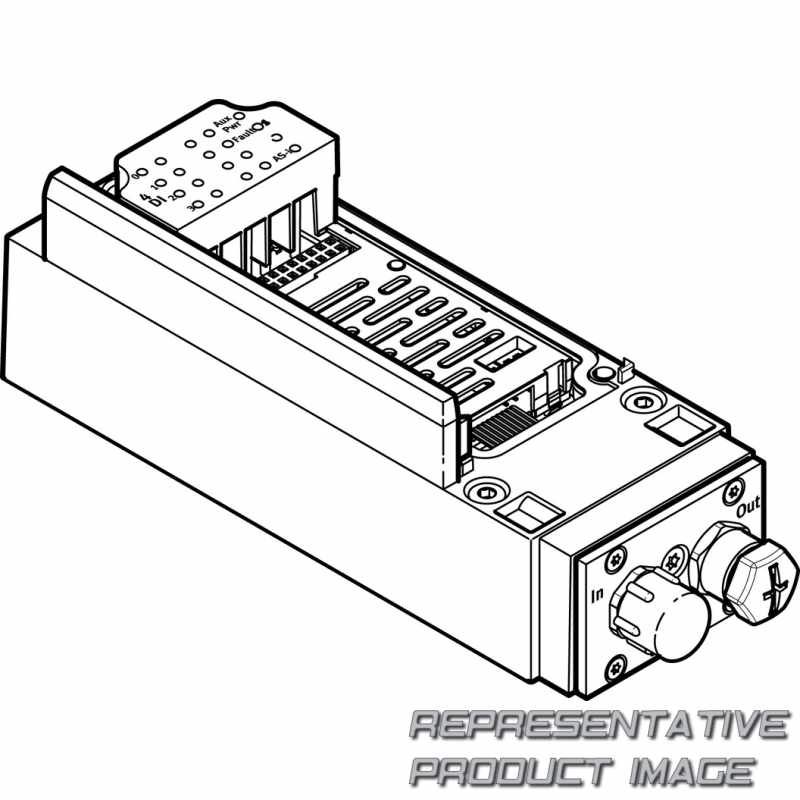

FESTO 549045 Módulo AS-i

VAEM-S6-S-FAS-8-8E

$295,82 $591,65 -50%
1 uds. con envío de 1 a 3 días a United States

Especificaciones

Mounting Position optional
Peso 300g
Operator controls DIL switch
Device-specific diagnostics Short circuit/overload of inputs Undervoltage Via peripherals error:
Max. number of valve positions 4 with bistable valves 8 with monostable valves
Reverse polarity protection For all electrical operating voltage connections
Operating voltage DC AS-interface 26,5 V ... 31,6 V
Load voltage range DC 21,6 V ... 26,4 V
Max. number of inputs 8
Nominal load voltage DC 24 V
Residual ripple, AS interface <= 20 mVpp
Switching level Signal 0: <= 5 V Signal 1: >= 11 V
CE mark (see declaration of conformity) To EU EMC Directive To EU Low Voltage Directive
Storage temperature -20 °C ... 60 °C
Degree of protection IP65 In assembled state
Product weight 300 g
Switching logic for inputs PNP (positive switching)
Addressing range 1 ... 31 (0) Set using AS-Interface addressing device
LED display, bus-specific AS-i: AS-Interface mode Aux/Pwr: AS-Interface power supply Fault: AS-Interface fault
Product identification ID1=Fh ID2=Eh
Material housing PA
Field bus interface Socket, M12x1, 4-pin Plug connector, M12x1, 4-pin
Mounting position optional
Max. number of valve coils 8
Number of slaves per device 2
Note on load voltage Via load voltage connection (24 V DC)
Max. number of outputs 8
Nominal DC operating voltage, AS-interface 26,5 V
Nominal operating voltage DC 24 V
Residual ripple, load voltage 4 Vpp
Permissible voltage fluctuations +/- 10 %
Corrosion resistance class CRC 0 - No corrosion stress
Relative air humidity 0 - 90%
Ambient temperature -5 °C ... 50 °C
Electrical control Fieldbus
Electrical connection Via CPX
Electrical isolation fieldbus interface Optocoupler
LED display, product-specific 0 ... 7: Switching status of inputs 12/14: switching status of valves (on valve)
Material seals NBR PUR
Note on materials RoHS-compliant
