Bürkert

204710 Bürkert

204710-1
204710-2

BURKERT 204710

313,50 € (sin IVA)
1 uds. con envío de 1 a 3 días a España

Especificaciones

Actuation Type rotary level
presión máx. 10 bar
Tensión de alimentación 24 v
Junta fkm (fluor rubber)
Peso 59g
coil wiring overvoltage protection without
electircal power consumption max. 0,8 w
electrical power consumption min 0,8 w
protection type ip (max. with suitable connector) ip20
electrical connection position supply side
electrical connection number of contacts 3
mounting material steel
Mounting type metric screws
switch time close max. 20 ms
valve piloting type electric
return type pneumatic spring + mechanical spring
Tipo 6.524
pilot control orifice (mm) 0,6 mm
pilot control seal material fkm (fluor rubber)
temperature environment max 55 °c
temperature medium max 50 °c
nominal pressure max 10 bar
pilot control material environment-contacting pps (polyphenylene sulphide)
main valve material environment-contacting pa (polyamide)
battery voltage yes
voltage min / rated voltage 24 v
working connection position on pneumatic module
flange fm20
add-on dimension 1 11 mm
manual actuation stop yes
manual actuation type rotary level
valve function 2 number of switching positions 2
valve function 2 code c
fluidic port connection number 3
electrical power consumption 2 max. 0,8 w
electrical power consumption 2 min. 0,8 w
coil size 10 mm
electrical connection polarity middle pin positive pole
cable plug in delivery not included
electrical connection sort rectangular plug 2,54 mm, 3-pin
mounting dimensions m2 x 28
nominal operation/duty cycle 100 %
switch time open max. 15 ms
main valve operating principle globe valve
product sub-group pneumatic valves
main valve orifice 1 (p) (mm) 4 mm
qnn value (gas) 300 l/min
main valve seal material fkm (fluor rubber)
temperature environment min -10 °c
temperature medium min -10 °c
nominal pressure min 2,5 bar
pilot control material medium-contacting pps (polyphenylene sulphide)
main valve wetted material pa (polyamide)
voltage max / rated voltage 24 v
working connection flange pattern fm20
working connection type flanged
supply connection type flanged
manual actuation screw slot yes
manual actuation material pa (polyamide)
manual actuation yes
fluidic port connection 2 number 3
valve function number of switching positions 2
Customscode 84812090

Productos relacionados

135204
BURKERT
92,20 €
132479
BURKERT
178,35 €
133148
BURKERT
68,78 €
132489
BURKERT
190,23 €
221081
BURKERT
106,31 €
136872
BURKERT
112,82 €
299728
BURKERT
237,50 €
132488
BURKERT
211,85 €
136763
BURKERT
235,83 €
135203
BURKERT
92,20 €
135208
BURKERT
190,23 €
136752
BURKERT
237,50 €
136773
BURKERT
244,63 €
194943
BURKERT
308,13 €
139398
BURKERT
244,63 €

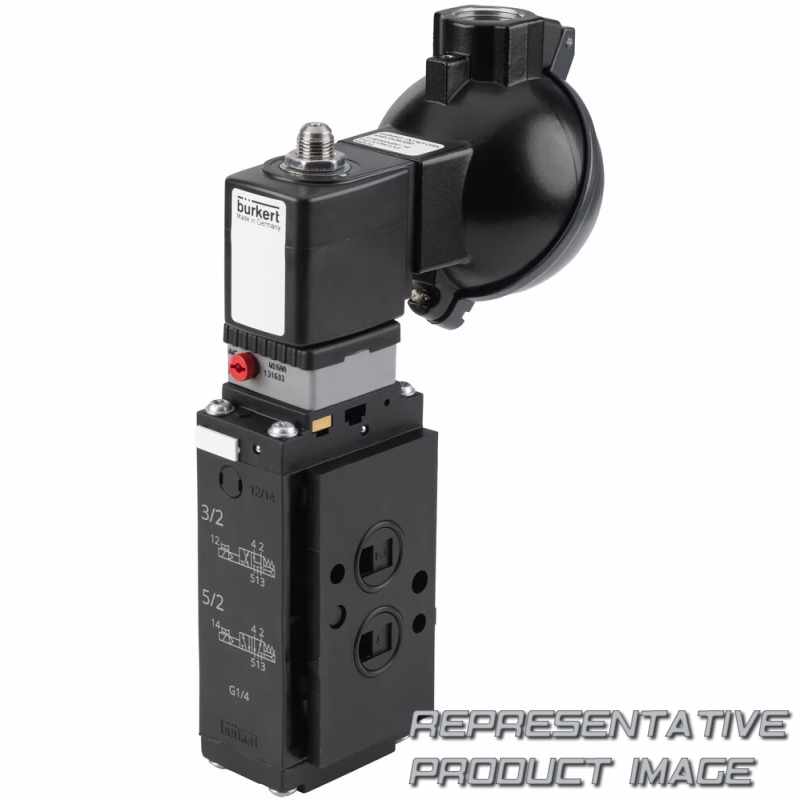

350477
