SMC AR
25 Productos

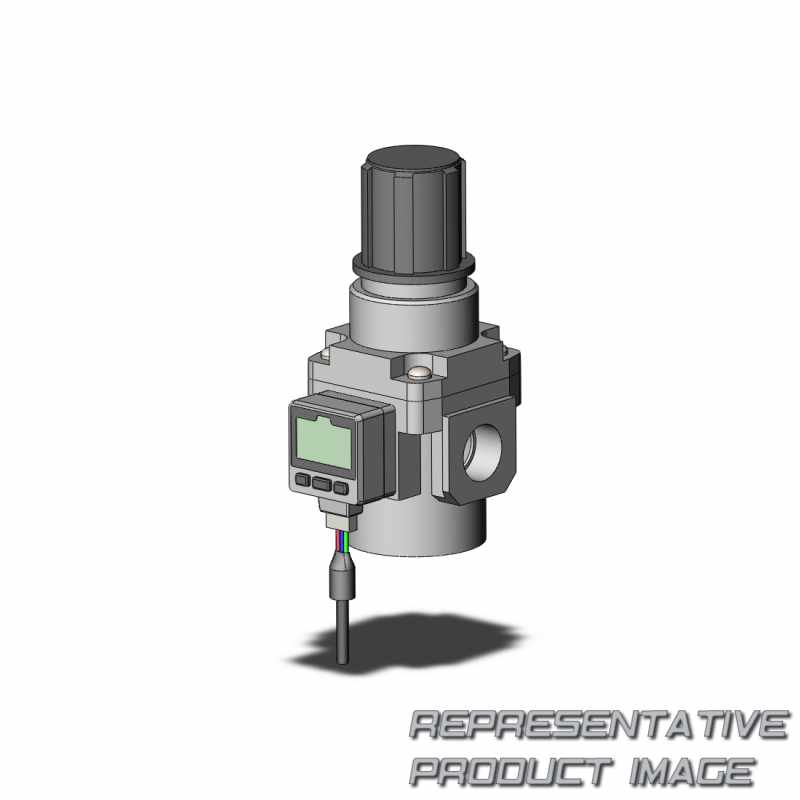

Descubre todas las configuraciones disponibles para la serie de produtos SMC AR AR Regulator, Regulator AR. Encuentra el producto correcto filtrando por Body Size, Port Size, Digital pressure switch, Knob, Pressure unit y Peso.
Códigos del producto AR
| Serie | Formato de número de catálogo | Descripción |
|---|---|---|
| AR | AR- - - | AR Regulator |
| AR | AR- - -A | Regulator AR |
| AR | AR- - - | AR Regulator |
Códigos del producto para el catálogo AR,
AR- - -
| 001 | Series |
|---|---|
| AR | AR Regulator |
| 002 | Body Size |
| 10 | 10 |
| 20 | 20 |
| 25 | 25 |
| 30 | 30 |
| 40 | 40 |
| 50 | 50 |
| 60 | 60 |
| 003 | With backflow function |
| K | With backflow function |
| Without backflow function | |
| 004 | Thread type |
| F | G |
| N | NPT |
| Rc or M5 | |
| 005 | Port size |
| M5 | M5 |
| 01 | 1/8 |
| 02 | 1/4 |
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 10 | 1 |
| 006 | Mounting |
| B | With bracket |
| H | With set nut (for panel fitting) |
| Without mounting option | |
| 007 | Pressure gauge |
|---|---|
| M | Round type pressure gauge (with limit indicator) |
| G | Round type pressure gauge |
| E | Square embedded type pressure gauge |
| Without pressure gauge | |
| 008 | Digital pressure switch |
| E1 | Output: NPN output / Electrical entry: Wiring bottom entry |
| E2 | Output: NPN output / Electrical entry: Wiring top entry |
| E3 | Output: PNP output / Electrical entry: Wiring bottom entry |
| E4 | Output: PNP output / Electrical entry: Wiring top entry |
| 009 | Set pressure |
| 1 | 0.02 to 0.2 MPa setting |
| 0.05 to 0.85 MPa setting | |
| 010 | Exhaust mechanism |
| N | Non-relieving type |
| Relieving type | |
| 011 | Flow direction |
| R | Flow direction: Right to left |
| Flow direction: Left to right | |
| 012 | Knob |
| Y | Upward |
| Downward | |
| 013 | Pressure unit |
| ZA | Digital pressure switch: With unit conversion function |
| Z | Name plate and pressure gauge in imperial units: psi |
| Name plate and pressure gauge in imperial units: MPa |
Códigos del producto para el catálogo AR,
AR- - -A
| 001 | Series |
|---|---|
| AR | Regulator AR |
| 002 | Size |
| 20 | 20 |
| 25 | 25 |
| 30 | 30 |
| 40 | 40 |
| 003 | Thread type |
| F | G |
| N | NPT |
| Rc | |
| 004 | Port Size |
| 01 | 1/8 |
| 02 | 1/4 |
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 005 | Mounting |
| B | With bracket |
| Without mounting option | |
| 006 | Pressure gauge |
| M | Round type pressure gauge (with limit indicator) |
| G | Round type pressure gauge (with color zone) |
| Without pressure gauge | |
| 007 | Set pressure |
|---|---|
| 1 | 0.02 to 0.2 MPa setting |
| 0.05 to 0.7 MPa setting | |
| 008 | Exhaust mechanism |
| N | Non-relieving type |
| Relieving type | |
| 009 | Flow direction |
| R | Folw direction: Right to left |
| Folw direction: Left to right | |
| 010 | Knob |
| Y | Upward |
| Downward | |
| 011 | Pressure unit |
| Z | Name plate, caution plate for bowl, and pressure gauge in imperial units |
| Name plate and pressure gauge in imperial units | |
| 012 | Type 2 |
| A | A |
Códigos del producto para el catálogo AR,
AR- - -
| 001 | Series |
|---|---|
| AR | AR Regulator |
| 002 | Body Size |
| 4 | 1/2 |
| 6 | 1 |
| 8 | 1 1/2 |
| 9 | 2 |
| 003 | Regulating pressure range |
| 25 | 0.05 to 0.83MPa |
| 30 | 0.02 to 0.2MPa |
| 004 | Thread type |
| F | G |
| N | NPT |
| Rc | |
| 005 | Port size |
| 02 | 1/4 |
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 10 | 1 |
| 12 | 1 1/4 |
| 14 | 1 1/2 |
| 20 | 2 |
| 006 | Accessory |
|---|---|
| P | P |
| B | With bracket |
| G | G |
| None | |
| 007 | Option |
| R | Flow direction: Right to left |
| None (Standard) |
