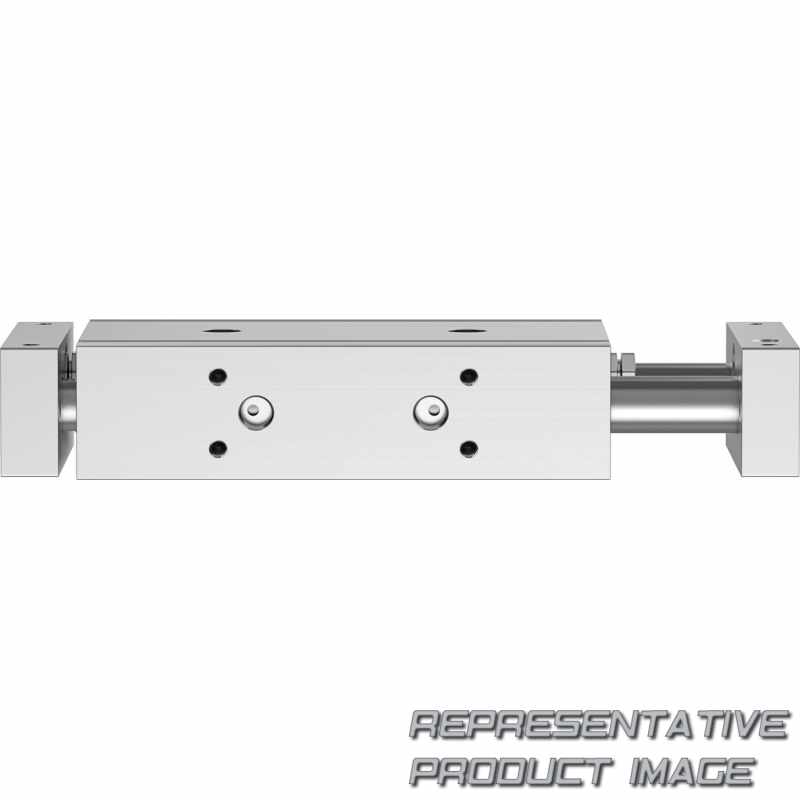

| Material piston rod | High-alloy stainless steel | ||
| Material seals | NBR | ||
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Product weight | 1.970 g | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 724 N | ||
| Max. effective load dependent upon stroke at defined distance xs | 36,8 N | ||
| Ambient temperature | -10 °C ... 80 °C | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Operating pressure | 1,2 bar ... 8 bar | ||
| Position detection | Via proximity switch | ||
| Guide | Plain-bearing guide | ||
| Cushioning | Elastic cushioning rings/plates at both ends | ||
| Piston diameter | 32 mm | ||
| Stroke | 30 mm |
| Material housing | Anodised wrought aluminium alloy | ||
| Material cover | Wrought aluminium alloy | ||
| Pneumatic connection | G1/8 | ||
| Moving mass | 841,5 g | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 724 N | ||
| Impact energy in end positions | 0,4 J | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Mode of operation | Double-acting | ||
| Symbol | 991.243 | ||
| Design | Guidance | ||
| Mounting position | optional | ||
| Operating mode, drive unit | Two yokes | ||
| Adjustable end-position range/length | 10 mm |
