Festo

1584945 Festo

1584945-1
1584945-2

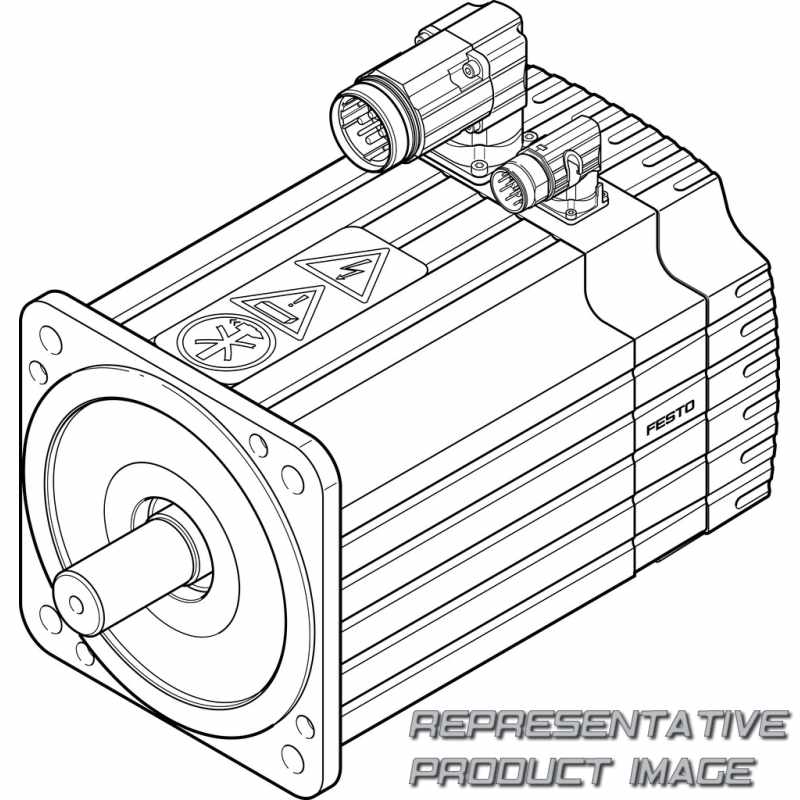

FESTO 1584945 Servomotor

EMMS-AS-190-MK-HS-ARB

6.314,98 € (sin IVA) 9.998,72 € -36%
Stock Limitado solo disponible bajo consulta

Especificaciones

Serie (EMMS) Motor
Motor type (AS) AC synchronous
Flange size, motors (190) 190
Length (M) Centre
Output shaft (K) Shaft to DIN 6885
Winding (HS) High voltage, standard
Conexión eléctrica (A) Angled plug
Measuring unit (R) Resolver
Brake (B) With brake
Degree of protection, electrical system Standard
Energy efficiency ENEFF (CN) / Class 2
Mean time to failure (MTTF), subcomponent 114 years, rotor position sensor 4469 years, holding brake
Mass moment of inertia of brake 3,6 kgcm²
Operating voltage DC for brake 24 V
Rotor position sensor, encoder measuring principle Inductive
Rotor position sensor Resolver
Permissible axial shaft load 250 N
Total mass moment of inertia of output 80,6 kgcm²
Phase-phase winding resistance 0,265 Ohm
Motor constant 1,589 Nm/A
Nominal motor current 14,24 A
Revoluciones máx. 4.060 rpm
Peak torque 120 Nm
Standstill torque 38,77 Nm
Type of winding switch Star inside
Tensión nominal de funcionamiento DC 565 V
Marcado CE (véase la declaración de conformidad) To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
Conformidad PWIS VDMA24364-B2-L
Nota sobre el material RoHS-compliant
Featherkey shaft type DIN 6885 A 10 x 8 x 40
Temperature monitoring PTC resistor
Insulation protection class F
Humedad relativa del aire 0 - 90%
Temperatura ambiente -10 °C ... 40 °C
Mean time to dangerous failure (MTTFd), subcomponent 228 years, rotor position sensor
Switching cycles holding brake 5 million idle actuations (without friction work!)
Power consumption, brake 17 W
Brake holding torque 30 Nm
Rotor position encoder interface SIN/COS analogue signals
Permissible radial shaft load 1.080 N
Peso del producto 28.200 g
Phase-phase winding inductance 3,38 mH
Voltage constant, phase-to-phase 98,6 mVmin
Peak current 88,2 A
Nominal power rating of motor 6.880 W
Nominal rotary speed 2.900 rpm
Par de apriete nominal 22,63 Nm
Number of pole pairs 6
Nominal voltage DC 565 V
CE marking (see declaration of conformity) To UK instructions for EMC To UK regulations for electrical equipment To UK RoHS instructions
Certificación RCM trademark c UL us - Recognized (OL)
Clase de resistencia a la corrosión CRC 2 - Moderate corrosion stress
Electrical connector system Plug
Grado de protección IP65
Rating class as per EN 60034-1 S1
Conforme a la norma IEC 60034
Temperatura de almacenamiento -20 °C ... 60 °C
