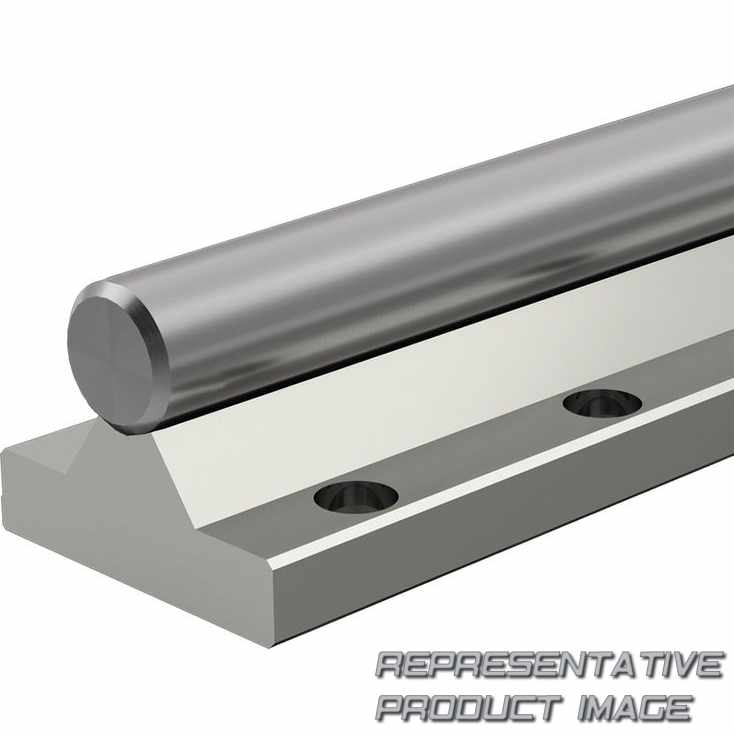

a)
Reference edge
b)
Hole pattern:
c)
Length
| m | 27 mm -0.5 | ||
| O1 (ISO 4762-8.8) | M20x60 | ||
| T | 120 | mm | |
| T2 | 25,50 | mm | |
| V | 34 | mm | |
| A | 150 | mm | |
| H (Measured with gauging shaft, nominal dimension d and length about 50 mm.) | 90 | mm | |
| m | 27 |
| N | 32 | mm | |
| O2 (ISO 4762-8.8) | M20 | ||
| T1 | 34 | mm | |
| U (DIN 7980, discontinued. Spring washer commercially available.) | 20 | ||
| V1 (Recommended design: No reference edge on opposite side (V1) and align parallel over shafts. ) | 13 | mm | |
| e | 110 | ||
| H1 | 75 | mm |
| m | 70 | kg |
