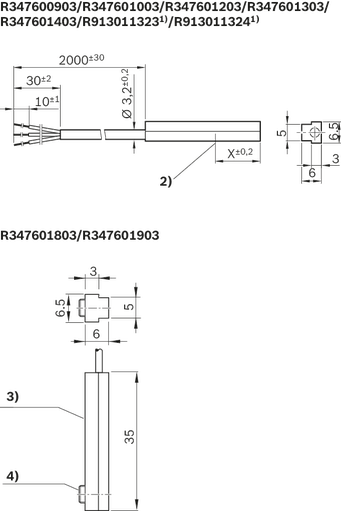

1)
Cable length 10 m
2)
Activation point
3)
Active surface
4)
Set screw for retention
| Activation point (dimension "X") | 9 | mm |
| Functional principle | Magnetic | ||
| Operating voltage | ≤ 30 | ||
| Output current | 0 | ||
| Switching current | 0 | ||
| Housing protection class | 0 | ||
| Switching function | REED / changeover contact (NC: C+NC, NO: C+NO) | ||
| Galvanized connection ends | ✔ | ||
| Short-circuit protection | ‒ | ||
| Switch-on suppression | ‒ | ||
| Pulse delay (Off delay) | ‒ | ||
| Suitable for flexing installation (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | ‒ | ||
| Weld spark resistant (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | ‒ | ||
| Cable diameter D (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | 3.2 mm ±0.2 | ||
| Bending radius, flexing (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | ‒ | ||
| Maximum permissible travel speed (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | ‒ | ||
| Permissible ambient temperature (min ... max) | -40 °C ... +85 °C | ||
| MTTFd (as per EN ISO 13849-1 ) | ‒ |
| Contact type | 0 | ||
| Current consumption | 0 | ||
| Switching voltage | 0 | ||
| Cable length | 0 | ||
| Load current | 500 | mA | |
| Connection type | Line 2.0 m, 3-pin | ||
| Function indication | ‒ | ||
| Reverse polarity protection | ‒ | ||
| Switching frequency | 2,50 | kHz | |
| Maximum permissible starting speed | 2 | m/s | |
| Can withstand torsion (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | ‒ | ||
| Cable cross-section (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | 3x0,14 | ||
| Bending radius, stationary (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | ‒ | ||
| Bending cycles (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | ‒ | ||
| Maximum permissible acceleration (Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain. ) | ‒ | ||
| Protection type | IP66 | ||
| Certifications and approvals | ‒ |
