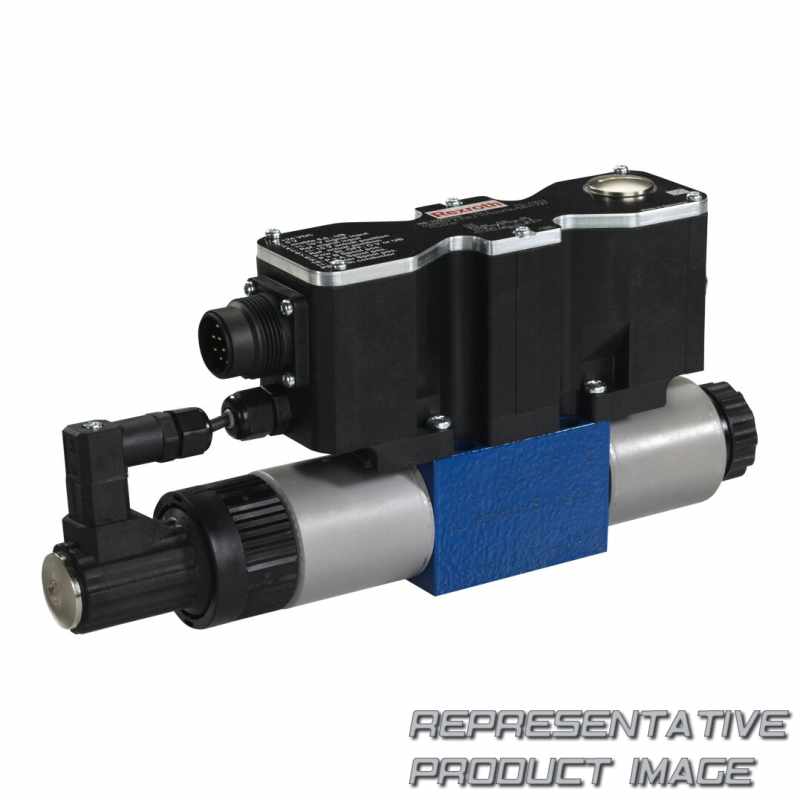

REXROTH R900246858 VALVULA PROPORCIONAL
4WREEM6E08-2X/G24K34/B6V
6.075,97 €
(sin IVA)
Stock Limitado
solo disponible bajo consulta
Especificaciones
- Size 10, 16, 25 (4W.H22), 25 (4W.H25), 32
- Component series 4X, 7X, 6X
- Maximum operating pressure 280 bar
- Maximum flow 1100 l/min
| Conexiones (4) | 4 main ports |
|---|---|
| Serie (WRE) | Proportional directional valve direct operated, with electrical position feedback |
| Tipo (E) | With integrated electronics (OBE) |
| Posición del carrete de control (M) | Monitoring of control spool position |
| Tamaño (6) | 6 |
| Símbolos (E) | E |
| Flujo nominal (08) | 8 l/min |
| Función escalonada | Without step function |
|---|---|
| Serie de Componentes (2X) | Component series 20 … 29 (20 … 29: unchanged installation and connection dimensions) |
| Voltaje de suministro (G24) | Direct voltage 24 V |
| Conexión eléctrica (K34) | Without mating connector with connector according to DIN 43 651 |
| Interfaz electrónica (B6) | Command value ±10 VDC |
| Material de Sellado (V) | FKM seal |
