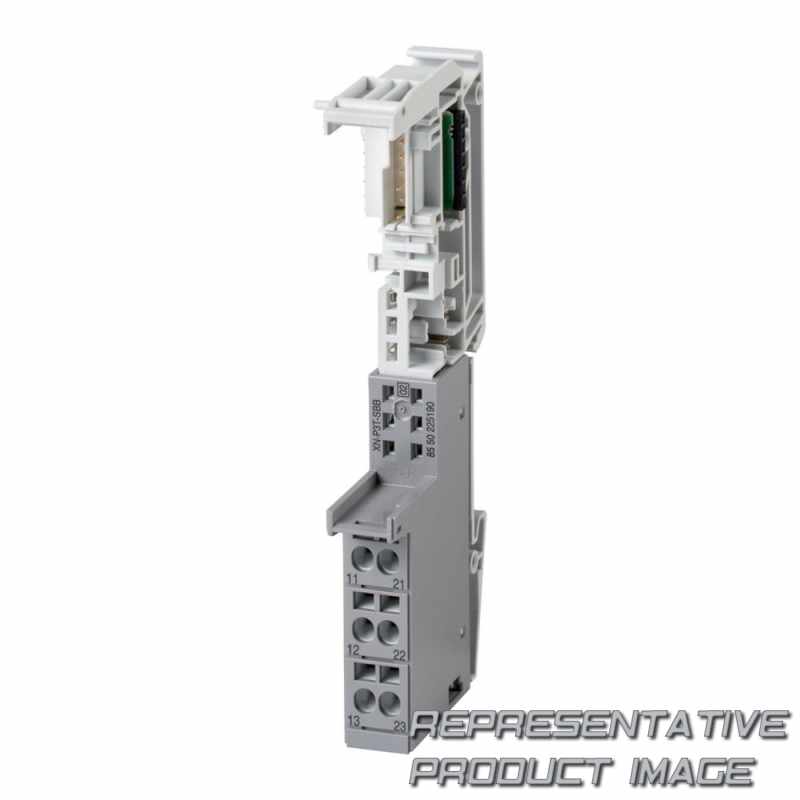

140074 Eaton

EATON 140074

xn-p3t-sbb

$18,79 $37,58 -50%
2 uds. con envío de 1 a 3 días a United States

Especificaciones

Mounting Position rail mounting possible
Ancho 12.6 mm
Peso 31g
Shock resistance mechanical, according to iec/en 60068-2-27
continuous according to iec/en 60068-2-29
Environmental conditions harmful gasses - so2: 10 ppm (relative humidity < 75%, no condensation)
harmful gasses - h2s: 1 ppm (relative humidity < 75%, no condensation)
10.2.4 resistance to ultra-violet (uv) radiation meets the product standard's requirements.
Type xi/on slice card base module
explosion safety category for dust none
sil (iec 61508) none
10.7 internal electrical circuits and connections is the panel builder's responsibility.
input voltage at ac 60 hz - max 0 v
relative humidity 5 - 95 % (indoor, level rh-2, non-condensing for storage at 45°c)
electromagnetic fields according to iec en 61100-4-2
connection type spring-loaded/screw terminal, connection design in top direction
10.2.3.2 verification of resistance of insulating materials to normal heat meets the product standard's requirements.
input voltage at ac 60 hz - min 0 v
heat dissipation capacity pdiss 0 w
terminal capacity 0.5 - 1.5 mm², flexible without ferrule, h07v-k
0.5 - 1.5 mm², with ferrules without plastic collar according to din 46228-1 (ferrules crimped gas-tight)
0.5 - 1.5 mm², with ferrules with plastic collar according to din 46228-1 (ferrules crimped gas-tight)
0.5 - 2.5 mm², solid, h07v-u
potential isolation through optocoupler: yes
safety performance level (en iso 13849-1) none
heat dissipation per pole, current-dependent pvid 0 w
10.9.4 testing of enclosures made of insulating material is the panel builder's responsibility.
10.13 mechanical function the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
output voltage at ac 60 hz - max 0 v
voltage dips according to en 61131-2 (voltage fluctuations/voltage dips)
10.6 incorporation of switching devices and components does not apply, since the entire switchgear needs to be evaluated.
10.9.3 impulse withstand voltage is the panel builder's responsibility.
emitted interference 230 - 1000 mhz (radiated, high frequency, according to en 55016-2-3)
30 - 230 mhz (radiated, high frequency, according to en 55016-2-3)
output voltage at ac 60 hz - min 0 v
explosion safety category for gas none
input voltage at dc - max 0 v
output current at ac, 60 hz - max 0 a
Vibration resistance according to iec/en 60068-2-6
surge rating according to iec/en 61000-4-5 level 4
stripping length (main cable) 8 mm
10.2.5 lifting does not apply, since the entire switchgear needs to be evaluated.
number of slots 1
mounting method rail mounting possible
10.4 clearances and creepage distances meets the product standard's requirements.
10.11 short-circuit rating is the panel builder's responsibility.
radiated rfi iec/en 61100-4-6
certifications iec/en 6113-2
rated data for terminations according to iec/en 60947-7-1
ul file no.: e205091
ul report applies to both us and canada
certified by ul for use in canada
csa-c22.2 no. 142
iec/en 61000-6-4
ul category control no.: nraq, nraq7
ul recognized
csa class no.: 2252-01, 2252-81
ce
iec/en 61000-6-2
iec/en 61131-2
ul 508
ce, cul
product width 12.6 mm
product length/depth 117.6 mm
input voltage at ac 50 hz - min 0 v
10.2.7 inscriptions meets the product standard's requirements.
10.2.2 corrosion resistance meets the product standard's requirements.
burst impulse according to iec/en 61000-4-4
output current at dc - max 0 a
10.10 temperature rise the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
output current at ac, 50 hz - max 0 a
Degree of protection ip20
10.9.2 power-frequency electric strength is the panel builder's responsibility.
input current at ac - max 0 a
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects meets the product standard's requirements.
number of connection levels 3
air discharge air/contact discharge according to iec/en 61000-4-2
equipment heat dissipation, current-dependent pvid 0 w
output voltage at dc - max 0 v
drop and topple according to iec 60068-2-31, free fall according to iec 60068-2-32
voltage type dc
10.3 degree of protection of assemblies meets the product standard's requirements.
10.2.6 mechanical impact does not apply, since the entire switchgear needs to be evaluated.
output voltage at dc - min 0 v
used with xn-pf-24vdc-d
xn-pf-120/230vac-d
xn-br-24vdc-d
10.5 protection against electric shock does not apply, since the entire switchgear needs to be evaluated.
ambient operating temperature - min 0 °c
static heat dissipation, non-current-dependent pvs 0 w
input current at dc - max 0 a
ambient operating temperature - max 55 °c
output voltage at ac 50 hz - min 0 v
system accessory yes
10.8 connections for external conductors is the panel builder's responsibility.
fitted with: pluggable modules, central modules
power supply
pluggable modules, others
10.2.3.1 verification of thermal stability of enclosures meets the product standard's requirements.
output voltage at ac 50 hz - max 0 v
input voltage at dc - min 0 v
gauge pin a1 (according to iec/en 60947-1)
10.12 electromagnetic compatibility is the panel builder's responsibility.
input voltage at ac 50 hz - max 0 v
rated operational current for specified heat dissipation (in) 0 a
catalog notes base module for the gateway supply (with xn‑br-24v dc-d)
Product weight .031 kg
product height 49.9 mm
ean 7640130120952

Productos relacionados

140070
EATON
$113,26
283203
EATON
$292,70
259077
EATON
$349,37
140040
EATON
$236,04
278462
EATON
$254,90
281235
EATON
$231,55
270335
EATON
$75,48
8026033
FESTO
-
1823376005
AVENTICS
$19,55
235868
EATON
$37,68

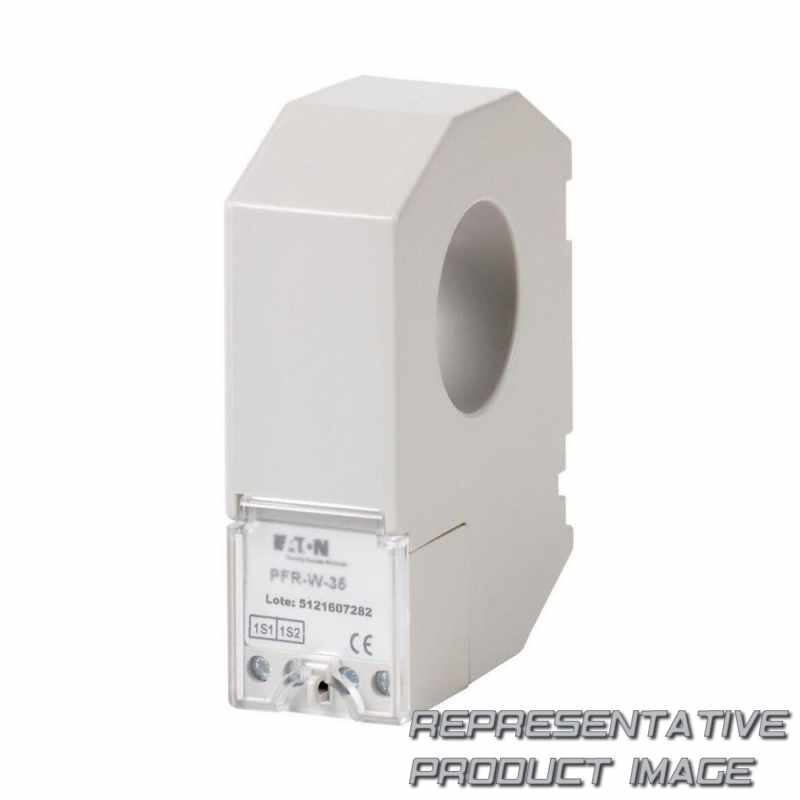

285602
